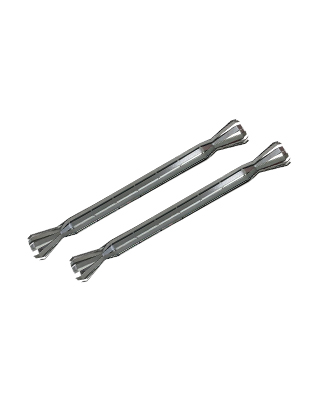

Wrap Around Amour

Product Overview

It is commonly known as the Metal Sheet Cannister. It is one of the most important components of the Cable Jointing Kits. This product is wrap around the cable joint and acts as an armour to the joint. It gives steadiness and stability to the joint. Cannisters are normally galvanised or made of aluminium. They are corrosion resistant& used to protect the joint against mechanical damage and to provide electrical continuity of cable armour. Duct Tapes are normally used near the edges of the cannisters which are large in size. This helps in maintaining uniform space and avoid entanglement of the end fingers strips

Main Technical Indicators

Product Code GICAN (Sheet Type) ALCAN (Sheet Type) WICAN
(Wire Type)
FGCAN
(Finger Type)
STCAN
(Strip Type)
Technical Drawing No. DC/GIC/001 DC/ALC/001 DC/WRC/001 DC/FTC/001 DC/STC/001
Material Galvanised Iron (heavy duty coating) Aluminium GI Wire (heavy duty coating) Galvanised Steel / aluminium Galvanised Steel
Thickness 0.9 / 1.0 mm 1.0 mm 2.3 mm dia 1.0 mm 0.9 mm
Width As per Customers Requirements (Thickness mentioned above is the standard Thickness with tolerance of + / - 0.1 mm) As per customer requirement As per customer requirement As per customer requirement
Slot Size N.A NA NA
Length As per customer requirement As per customer requirement As per customer requirement

We have a dedicated in house R & D to develop the Cannister as per your technical requirement.
