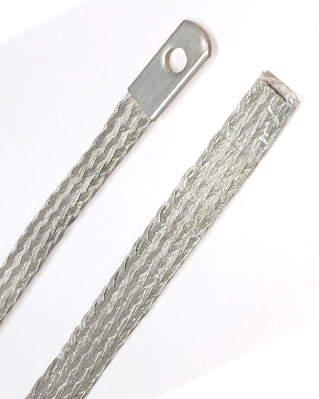

Flat braids made of many copper wires are also sometimes used for flexible electrical connections between large components. Tinned copper braid without the connection eye are also used as an earth lead in joints and terminations. Tinned copper braid with connection eye at one end, used as an earth lead for the metal tape/lead sheath, in plastic and rubber and paper insulated lead sheathed cables. The numerous smaller wires comprising the braid are much more resistant to breaking under repeated motion and vibration than is a cable of larger wires. Also with our scope is to provide the same with the lugs and also without water block.
Flat Braids without Lugs & Solder | Flat Braids with Lugs but without Water /Solder Block | Flat Braids with Lugs & Water / Solder Block | ||||||
Technical Dwg No: | DC/FLCB/001 | Technical Dwg No: | DC/CBL/001 | Technical Dwg No: | DC/CBLS/001 | |||
Product Code | L1 | B | Product Code | L1 | B | Product Code | L1 | B |
CB-013-1 | Length as Required* |
10 | CB-036-2-400 | 400 | 14 | CBW-036-2-400 | 400 | 14 |
CB-013-2 | 15 | CB-036-2-800 | 800 | 14 | CBW-036-2-800 | 800 | 14 | |
CB-013-3 | 22 | CB-036-3-400 | 400 | 20 | CBW-036-3-400 | 400 | 20 | |
CB-013-4 | 25 | CB-036-4-400 | 400 | 22 | CBW-036-4-400 | 400 | 22 | |
CB-013-5 | 35 | CB-036-4-500 | 500 | 22 | CBW-036-4-500 | 500 | 22 | |
CB-013-6 | 50 | CB-036-4-750 | 750 | 22 | CBW-036-4-750 | 750 | 22 | |
CB-036-5-500 | 500 | 25 | CBW-036-5-500 | 500 | 25 | |||
CB-036-6-500 | 500 | 33 | CBW-036-6-500 | 500 | 33 | |||
CB-036-6-850 | 850 | 33 | CBW-036-6-850 | 850 | 33 | |||
CB-036-4-750 | 750 | 40 | CBW-036-4-750 | 750 | 40 |
For without lugs the product is available in the length size as per customer specification or continuous lengths of 50 / 100 Mtrs
For braids with lugs with / without water/ solder block product available as per customer specification of length
We have a dedicated in house R & D to develop these braids as per your technical requirement
