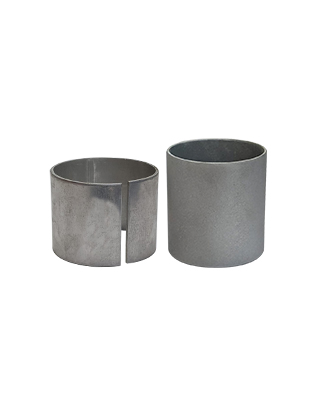

Support Ring

Product Overview

Made from Pipes, these rings are used to bind the heavy under-sheath power cables which have just been joint using the Cable Jointing kit. Galvanized or Zinc Plated MS support ring, used in cable joints to improve the electrical contact between the cable armour and the joint case. It also protects the cable cores from being crushed by the clamping force of the armour clamp. These Rings are zinc plated or galvanized for better longevity.

Main Technical Indicators

Support Ring Back up Ring Split Ring
Technical Drawing No. DC/SR/001 DC/BR/001 DC/SPR/001
MS Zinc Plated (White) SRZW BRZW Galvanized – SPGW
MS Zinc Plated (Yellow) SRZY BRZY Galvanized – SPGY
Brass SRBR - -
Aluminum SRAL - SPAL
Diameter Ranges from 19 to 105mm Ranges from 54 to 105mm Ranges from 26 to 115mm
Thickness 1.5 to 2mm 1.5 to 2mm 1/1.2/1.5 mm
Length As per Customer Requirement

We have a dedicated in house R & D to develop the Support Ring as per your technical requirement.
